無屑絲攻

  1. 無屑絲攻
無屑絲攻

無屑絲攻

FLUTELESS TAPS
M/UNC/UNF/UNS
undefined
/

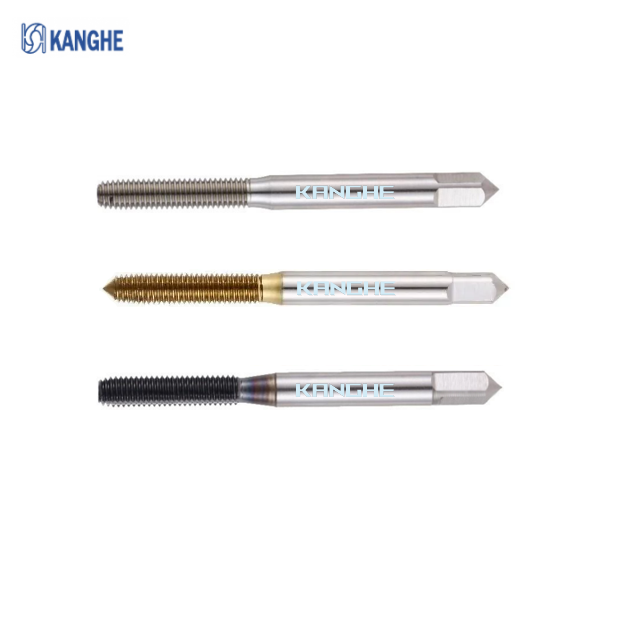

  • 無屑絲攻.PNG
詳細介紹
-康禾精工 KANGHE -
材質：HSS-E
塗層處理：白刀/鍍鈦/TICN

無屑絲攻(擠壓絲攻)攻牙的特性在於無屑產生,其利用內擠壓成型,擠壓的面光滑外觀美麗,品質穩定,材質纖維連續沒有被切斷,螺紋強度約增加30%因絲攻本身無溝槽心部較大絲攻不易折斷,壽命相對較長,最適合加工延展性大的材料:如鐵板,鋁材,不銹鋼,鋁鎂材質之加工。

公制:M0.5~M20 (加大、加長)
英制:W 1/8-40~1/2-12
美制:UNF 00-90~UNC5/8-11 (細牙、加大、加長)
※ 詳細規格表如下,特殊規格絲攻可少量訂製※
※ 絲攻規格若有未列出之規格請聯絡我們諮詢※
加入好友
康禾精工官方LINE@ ID:@KANGHE
公制牙(M)
規格 精度 吃入部
M0.5*0.125 RH4 B
M0.6*0.15 RH4 B
M0.7*0.175 RH4 B
M0.8*0.2 RH4 B
M0.9*0.225 RH4 B
M1*0.2 RH4 B
M1*0.25 RH4~5 B、P
M1.1*0.25 RH4 B、P
M1.2*0.2 RH4 B
M1.2*0.25 RH4~5 B、P
M1.4*0.2 RH4 B、P
M1.4*0.3 RH4~5 B、P
RH6~7 B
M1.5*0.3 RH4 B、P
M1.6*0.2 RH4 B、P
M1.6*0.35 RH3~6 B、P
RH7 B
M1.7*0.2 RH4 B
M1.7*0.35 RH3~5 B、P
M1.8*0.2 RH4 B、P
M1.8*0.35 RH4 B、P
RH5 B
M2*0.25 RH4 B、P
RH5 B
M2*0.4 RH4~7 B、P
RH8 B
M2.2*0.25 RH5 B
M2.3*0.4 RH4~5 B、P
M2.5*0.25 RH6 B
M2.5*0.35 RH6 B
M2.5*0.45 RH4 P
RH5~7 B、P
RH8 B
M2.6*0.35 RH6 B
M2.6*0.45 RH5~6 B、P
RH7 B
M3*0.35 RH6 B、P
M3*0.5 RH4~7 B、P
RH8~9 B
M3.5*0.35 RH6 B
M3.5*0.6 RH6 B、P
RH7~9 B
M4*0.35 RH6 B
M4*0.5 RH6 B、P
RH7 B
M4*0.7 RH5~8 B、P
RH9 B
M4*0.75 RH7 B
M4.5*0.5 RH7 B
M4.5*0.75 RH7 B
M5*0.35 RH6 B
M5*0.5 RH6 B、P
RH7~8 B
M5*0.8 RH5~8 B、P
RH9 B
M6*0.5 RH7 B
RH8 B
M6*0.75 RH7 B
RH8 B
M6*1 RH6~7 B、P
RH8~9 B
M7*0.5 RH7 B
M7*0.75 RH7 B
M7*1 RH7~9 B
M8*0.5 RH7 B
M8*0.75 RH7~9 B
M8*1 RH7~8 B
M8*1.25 RH7~9 B
M9*0.5 RH7 B
M9*0.75 RH7 B
M9*1 RH7~8 B
M9*1.25 RH7 B
M10*0.5 RH7 B
M10*0.75 RH7 B
M10*1 RH7~9 B
M10*1.25 RH7~8 B
M10*1.5 RH7~10 B
M11*1 RH7 B
M11*1.5 RH7 B
M12*0.5 RH7 B
M12*0.75 RH7 B
M12*1 RH8~9 B
M12*1.25 RH7~8 B
M12*1.5 RH7~10 B
M12*1.75 RH7~10 B
M14 x1 RH8 B
M14*1.5 RH8 B
M14*2 RH8 B
M16*1 RH8 B
M16*1.5 RH8 B
M16*2 RH8 B
M18*1 RH10 B
M18*1.5 RH10 B
M18*2.5 RH10 B
M20*1.5 RH11 B
M20*2.5 RH11 B

美制牙(UNC/UNF/UNS)
規格 精度 吃入部
UNF00-90 RH4 B
UNF0-90 RH4 B
UNF0-80 RH3、5 B
RH4 B、P
UNF1-72 RH4 B
UNF1-64 RH4 B
UNF2-64 RH4 B
UNC2-56 RH4 B
RH5 B、P
UNF3-56 RH5 B
UNC3-48 RH5 B
UNF4-48 RH5 B、P
UNC4-40 RH5~6 B、P
RH7~8 B
UNC5-40 RH5 B、P
RH6~7 B
UNF5-44 RH6 B
UNF6-40 RH6 B、P
UNC6-32 RH5~8 B、P
UNS8-40 RH6 B
UNC8-32 RH6~7 B、P
RH8 B
UNF8-36 RH7 B
UNF10-32 RH6 P
RH7 B、P
UNC10-24 RH6 B、P
RH7 B
UNF12-32 RH7 B
UNF12-28 RH7 B、P
UNC12-24 RH7 B、P
UNS1/4-40 RH7 B
UNS1/4-36 RH7 B
UNS1/4-32 RH7 B
UNS1/4-28 RH7 B、P
UNS1/4-20 RH6~7 B、P
RH8 B
UNS5/16-32 RH7 B
UNF5/16-24 RH7~8 B
UNC5/16-18 RH7~8 B
UNF3/8-24 RH7~8 B
UNC3/8-16 RH7~8 B
UNF7/16-24 RH7 B
UNF7/16-20 RH7~8 B
UNC7/16-14 RH7 B
UNF1/2-20 RH8 B
UNC1/2-13 RH8~9 B
UNF9/16-18 RH8 B
UNC9/16-12 RH8 B
UNF5/8-18 RH10 B
UNC5/8-11 RH9 B

英制牙( W )
規格 精度 吃入部
W1/8-40 RH6 B、P
W5/32-32 RH7 B
W3/16-24 RH6 B
W7/32-24 RH6~7 B
W1/4-20 RH7 B
W5/16-18 RH7 B
W3/8-16 RH7 B
W7/16-14 RH7 B
W1/2-12 RH8 B

 汽門嘴無屑絲攻
規格 精度 吃入部
5V1 RH7 B
8V1 RH7 B
10V2 RH7 B

 針車牙(SM)
規格 精度 吃入部
SM9/64-40 RH6 B
SM11/64-40 RH6 B
SM1/4-28 RH7~8 B
SM1/4-40 RH7 B
