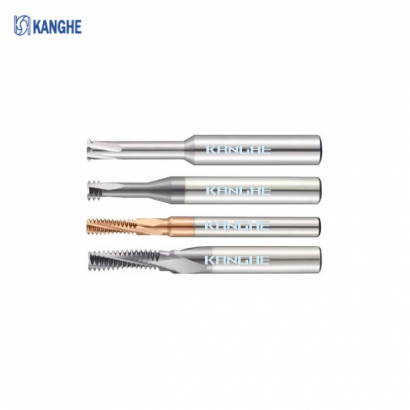

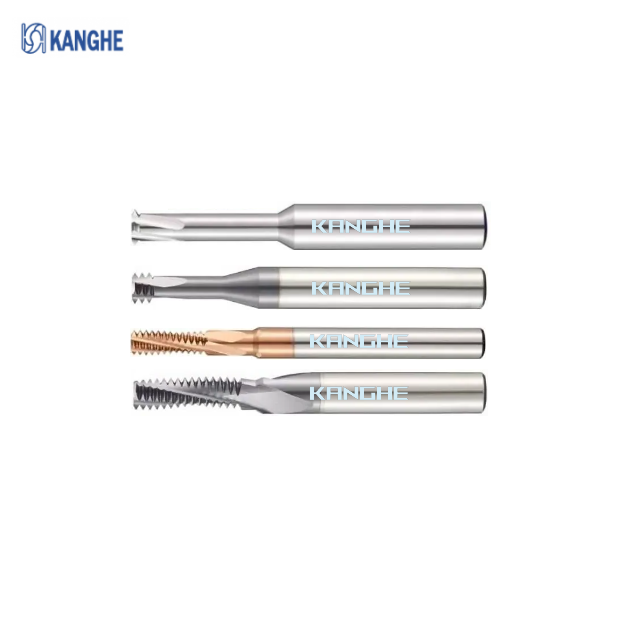

鎢鋼螺紋銑牙刀為一種加工螺紋的刀具。
螺紋銑牙刀分為:單牙、三排牙、全牙及多功能等類型。
※ 若有未列出之規格,請聯絡我們諮詢! ※
康禾精工官方LINE@ ID:@KANGHE
鎢鋼螺紋銑牙刀為一種加工螺紋的刀具。
螺紋銑牙刀分為:單牙、三排牙、全牙及多功能等類型。
※ 若有未列出之規格,請聯絡我們諮詢! ※
康禾精工官方LINE@ ID:@KANGHE

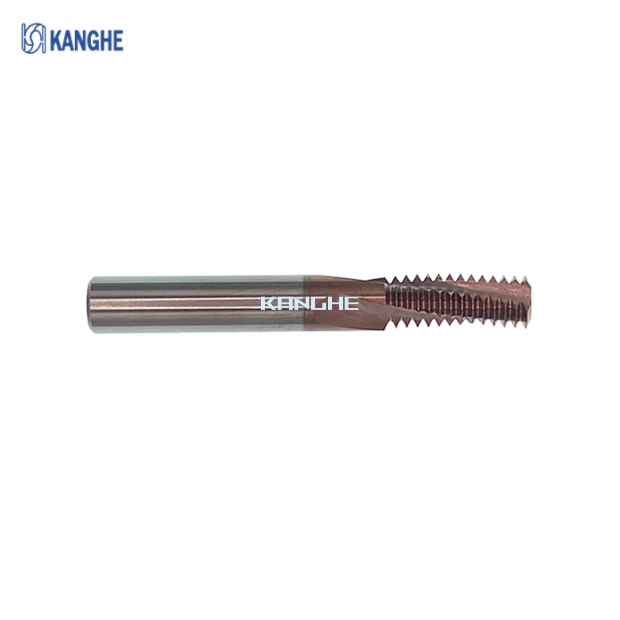

| 鎢鋼全牙螺紋銑牙刀（60°） | |
|
規格
|
刃徑d x避空長L x柄徑D x總長L |
| M3 x 0.5 | 2.35d x 6.0L x D4 x 50L |
| M4 x 0.7 | 3.15d x 8.0L x D4 x 50L |
| M5 x 0.5 | 4.0d x 10L x 4D x 50L |
| M5 x 0.75 | 4.0d x 10L x 4D x 50L |
| M5 x 0.8 | 4.0d x 10L x 4D x 50L |
| M6 x 0.75 | 4.8d x 12L x 6D x 50L |
| M6 x 1.0 | 4.8d x 12L x 6D x 50L |
| M8 x 0.5 | 6.0d x 16L x 6D x 50L |
| M8 x 0.75 | 6.0d x 16L x 6D x 50L |
| M8 x 1.0 | 6.0d x 16L x 6D x 50L |
| M8 x 1.25 | 6.0d x 16L x 6D x 50L |
| M10 x 1.0 | 8.0d x 21L x 8D x 75L |
| M10 x 1.25 | 8.0d x 21L x 8D x 75L |
| M10 x 1.5 | 8.0d x 21L x 8D x 75L |
| M12 x 0.5 | 10d x 24L x 10D x 75L |
| M12 x 0.75 | 10d x 24L x 10D x 75L |
| M12 x 1.0 | 10d x 24L x 10D x 75L |
| M12 x 1.5 | 10d x 24L x 10D x 75L |
| M12 x 1.75 | 10d x 24L x 10D x 75L |
| M14 x 1.0 | 12d x 28L x 12D x 75L |
| M14 x 1.5 | 12d x 28L x 12D x 75L |
| M14 x 2.0 | 11.6d x 28L x 12D x 75L |
| M16 x 1.5 | 14d x 32L x 14D x 100L |
| M16 x 2.0 | 13d x 32L x 14D x 100L |
| M18 x 2.5 | 14.8d x 38L x 16D x 100L |
| M20 x 1.5 | 16d x 38L x 16D x 100L |
| M24 x 3.0 | 16d x 42L x 16D x 100L |
| 鎢鋼美製全牙螺紋銑牙刀（UN）（60°） | |
|
規格(UNF)
|
刃徑d x避空長L x柄徑D x總長L
|
| UNF 1/4-28 |
5.4d x 9.4L x 6D x 60L
|
| UNF 5/16-24 |
7.4d x 9.4L x 8D x 60L
|
| UNF 7-16-20 |
7.1d x 14.1L x 8D x 75L
|
| UNF 9/16-18 |
9.1d x 14.1L x 10D x 75L
|
| UNF 3/4-16 |
11.1d x 14.1L x 12D x 75L
|
| 規格(UNC) | 刃徑d x避空長L x柄徑D x總長L |
| UNC 1/4-20 | 5.0d x 12L x 6D x 60L |
| UNC 5/16-18 | 6.5d x 18L x 8D x 75L |
| UNC 3/8-16 | 7.8d x 21L x 8D x 75L |
| UNC 7/16-14 | 9.3d x 24L x 10D x 75L |
| UNC 9/16-12 | 12d x 28L x 12D x 75L |
| UNC 1/2-13 | 10d x 24L x 10D x 75L |
| UNC 5/8-11 | 12d x 38L x 12D x 75L |
| UNC 3/4-10 | 16d x 38L x 16D x 100L |
|
鎢鋼NPT美製全牙錐度管螺紋銑牙刀（60°）
|
|
|
規格
|
刃徑d x避空長L x柄徑D x總長L
|
|
NPT1/16-27
|
5.4d x 9.4L x 6D x 60L
|
|
NPT1/8-27
|
7.4d x 9.4L x 8D x 60L
|
|
NPT1/4-18
|
7.1d x 14.1L x 8D x 75L
|
|
NPT1/4-18
|
9.1d x 14.1L x 10D x 75L
|
|
NPT3/8-18
|
11.1d x 14.1L x 12D x 75L
|
|
NPT1/2-14
|
10.8d x 18.1L x 12D x 75L
|
|
NPT3/4-14
|
14.8d x 18.1L x 16D x 100L
|
|
NPT1″-11.5
|
14.6d x 22L x 16D x 100L
|
|
鎢鋼NPTF美製全牙錐度密封管螺紋銑牙刀（60°）
|
|
|
規格
|
刃徑d x避空長L x柄徑D x總長L
|
|
NPTF1/16-27
|
5.4d x 9.4L x 6D x 60L
|
|
NPTF1/8-27
|
7.4d x 9.4L x 8D x 60L
|
|
NPTF1/4-18
|
7.1d x 14.1L x 8D x 75L
|
|
NPTF1/4-18
|
9.1d x 14.1L x 10D x 75L
|
|
NPTF3/8-18
|
11.1d x 14.1L x 12D x 75L
|
|
NPTF1/2-14
|
10.8d x 18.1L x 12D x 75L
|
|
NPTF3/4-14
|
14.8d x 18.1L x 16D x 100L
|
|
NPTF1″-11.5
|
14.6d x 22L x 16D x 100L
|
|
鎢鋼全牙BSPT(RC)英制錐度密封管螺紋銑牙刀（55°）
|
|
|
規格
|
刃徑d x避空長L x柄徑D x總長L
|
|
BSPT(RC)1/16-28
|
5.3d x 9.9L x 6D x 60L
|
|
BSPT(RC)1/8-28
|
7.3d x 9.9L x 8D x 60L
|
|
BSPT(RC)1/4-19
|
7.0d x 14L x 8D x 75L
|
|
BSPT(RC)1/4-19
|
9.0d x 15L x 10D x 75L
|
|
BSPT(RC)3/8-19
|
11d x 14L x 12D x 75L
|
|
BSPT(RC)1/2-14
|
10d x 19L x 12D x 75L
|
|
BSPT(RC)3/4-14
|
14.6d x 21L x 16D x 100L
|
|
BSPT(RC)1″-11
|
14.2d x 27L x 16D x 100L
|
|
鎢鋼全牙BSP（G）英制直管螺紋銑牙刀（55°）
|
|
|
規格
|
刃徑d x避空長L x柄徑D x總長L |
|
BSP(G)1/16-28
|
6.0d x 14L x 6D x 60L
|
|
BSP(G)1/8-28
|
8.0d x 14L x 8D x 60L
|
|
BSP(G)1/4-19
|
8.0d x 18L x 8D x 75L
|
|
BSP(G)1/4-19
|
10d x 20L x 10D x 75L
|
|
BSP(G)3/8-19
|
12d x 25L x 12D x 75L
|
|
BSP(G)1/2-14
|
12d x 20L x 12D x 75L
|
|
BSP(G)3/4-14
|
16d x 30L x 16D x 100L
|
|
BSP(G)1″-11
|
16d x 32L x 16D x 100L
|
|
多功能螺紋銑牙刀(90°)
|
|
|
規格
|
刃徑d x避空長L x倒角長x倒角角度x柄徑D x總長L
|
|
M1.6 x 0.35
|
1.15d x 5L x 0.35L x 90° x D4 x 50L
|
|
M2.0 x 0.4
|
1.5d x 6.5L x 0.4L x 90° x D4 x 50L
|
|
M2.5 x 0.45
|
1.9d x 7L x 0.45L x 90° x D4 x 50L
|
|
M3.0 x 0.5
|
2.4d x 9.0L x 0.4L x 90° x 6D x 50L
|
|
M4.0 x 0.7
|
3.2d x 11L x 0.57L x 90° x 6D x 50L
|
|
M5.0 x 0.8
|
3.9d x 12L x 0.7L x 90° x 6D x 50L
|
|
M6.0 x 1.0
|
4.7d x 14L x 0.79L x 90° x 6D x 50L
|
|
M8.0 x 1.25
|
6.5d x 18L x 0.9L x 90° x 8D x 60L
|
|
M10 x 1.5
|
7.8d x 23L x 1.12L x 90° x 8D x 60L
|
|
M12 x 1.75
|
9.6d x 26L x 1.2L x 90° x 10D x 75L
|
