鎢鋼螺紋銑牙刀為一種加工螺紋的刀具。

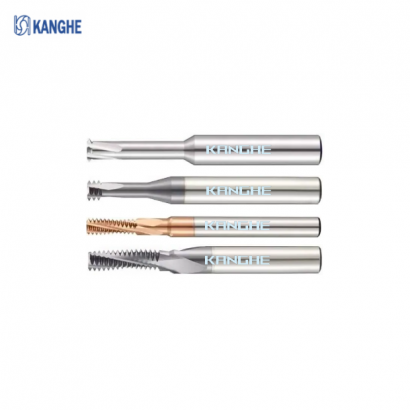

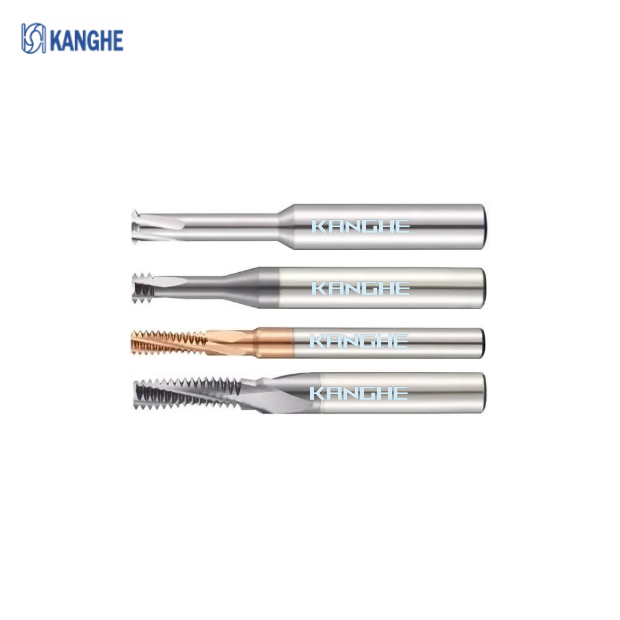

螺紋銑牙刀分為: 單牙、三排牙、全牙及多功能(免打底孔)等類型。
※ 若有未列出之規格,請聯絡我們諮詢! ※
康禾精工官方LINE@ ID:@KANGHE
| 1.鎢鋼單齒範圍螺紋銑牙刀（60°） |
| 規格 |
刃徑d x避空長L x柄徑D x總長L |
| P0.5-P0.8 |
3.9d x 16L x 4D x 50L |
| P0.5-P1.0 |
4.85d x 20L x 6D x 60L |
| P0.5-P1.25 |
5.9d x 25L x 6D x 60L |
| P0.5-P1.0 |
9.8d x 35L x 10D x 75L |
| P1.0-P1.5 |
7.9d x 32L x 8D x 75L |
| P1.0-P1.75 |
9.9d x 38L x 10D x 75L |
| P1.0-P2.0 |
11.9d x 40L x 12D x 75L |
| P2.0-P3.0 |
14d x 48L x 14D x 100L |
| P2.0-P3.5 |
16d x 50L x 16D x 100L |
| 2.鎢鋼英制單齒範圍螺紋銑牙刀（55°） |
| 規格 |
刃徑d x避空長L x柄徑D x總長L |
| P1.058 |
3.5d x 10L1 x 4D x 50L |
| P1.27 |
4d x 12L x 4D x 50L |
| P0.907-P1.411 |
6d x 14L x 6D x 50L |
| P1.336-P1.814 |
8d x 22L x 8D x 60L |
| P1.336-P1.814 |
10d x 30L x 10D x 75L |
| P1.336-P2.54 |
12d x 38L x 12D x 75L |

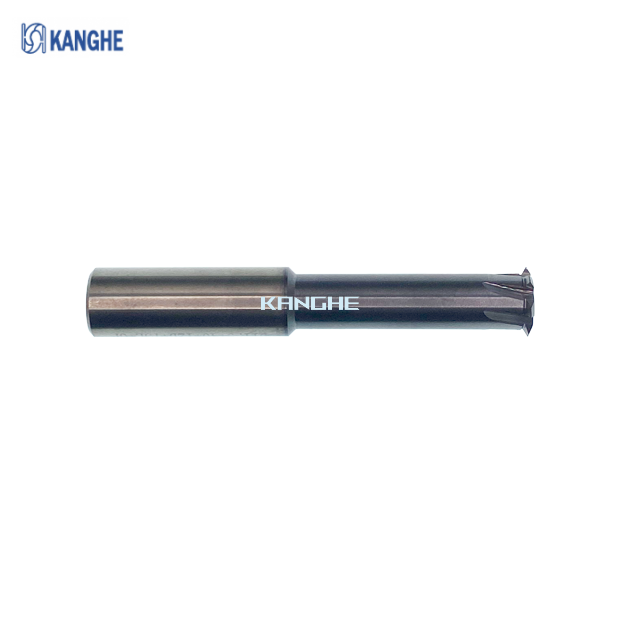

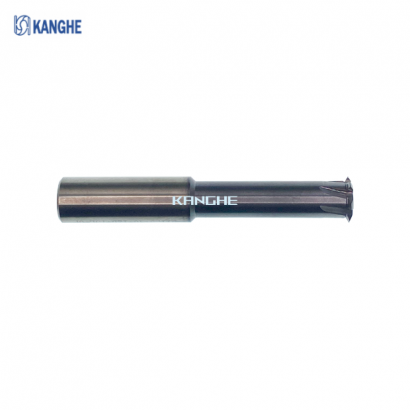

| 3.鎢鋼單齒螺紋銑牙刀（60°） |
| 規格 |
刃徑d x避空長L x柄徑D x總長L |
| M0.8 x 0.2 |
0.55d x 1.5L x 4D x 50L |
| M0.9 x 0.225 |
0.625d x 1.8L x 4D x 50L |
| M1.0 x 0.25 |
0.7d x 3.0L x 4D x 50L |
| M1.2 x 0.25 |
0.9d x 3.6L x 4D x 50L |
| M1.4 x 0.3 |
1.05d x 4.0L x 4D x 50L |
| M1.6 x 0.35 |
1.2d x 4.5L x 4D x 50L |
| M2.0 x 0.4 |
1.55d x 6.0L x 4D x 50L |
| M2.5 x 0.45 |
1.96d x 6.5L x 4D x 50L |
| M3.0 x 0.5 |
2.35d x 8.0L x 4D x 50L |
| M4.0 x 0.7 |
3.15d x 10L x 4D x 50L |
| M5.0 x 0.8 |
3.9d x 12L x 4D x 50L |
| M6.0 x 1.0 |
4.8d x 15L x 6D x 50L |
| M8 x 1.25 |
6.0d x 20L x 6D x 60L |
| M10 x 1.5 |
7.7d x 25L x 8D x 60L |
| M12 x 1.75 |
9.6d x 30L x 10D x 75L |
| M14 x 2.0 |
10d x 36L x 10D x 75L |
| M18 x 2.5 |
12d x 38L x 12D x 75L |
| M24 x 3.0 |
14d x 48L x 14D x 75L |
| M30 x 3.5 |
16d x 50L x 16D x 75L |
| 4.鎢鋼單齒加長螺紋銑牙刀（60°） |
| 規格 |
刃徑d x避空長L x柄徑D x總長L |
規格 |
刃徑d x避空長L x柄徑D x總長L |
| P0.3 |
1.05d x 4.0L x 4D x 100L |
P1.0 |
4.8d x 15L x 6D x 100L |
| P0.35 |
1.2d x 4.5L x 4D x 100L |
P1.25 |
6.0d x 20L x 6D x 100L |
| P0.4 |
1.55d x 6.0L x 4D x 100L |
P1.5 |
7.7d x 25L x 8D x 100L |
| P0.45 |
1.96d x 6.5L x 4D x 100L |
P1.75 |
9.6d x 30L x 10D x 100L |
| P0.5 |
2.35d x 8.0L x 4D x 100L |
P2.0 |
10d x 36L x 10D x 100L |
| P0.7 |
3.15d x 10L x 4D x 100L |
P2.5 |
12d x 38L x 12D x 100L |
| P0.8 |
3.9d x 12L x 4D x 100L |
|
|
| 5.鎢鋼三排牙螺紋銑牙刀（60°） |
| 規格 |
刃徑d x避空長L x柄徑D x總長L |
| M1.0 x 0.25 |
0.73d x 2.0L x 4D x 50L |
| M1.2 x 0.25 |
0.92d x 2.4L x 4D x 50L |
| M1.4 x 0.3 |
1.05d x 2.8L x 4D x 50L |
| M1.6 x 0.35 |
1.2d x 3.2L x 4D x 50L |
| M2.0 x 0.4 |
1.55d x 4.0L x 4D x 50L |
| M2.5 x 0.45 |
2.0d x 5.0L x 4D x 50L |
| M3.0 x 0.5 |
2.4d x 6.0L x 4D x 50L |
| M4.0 x 0.7 |
3.15d x 8.0L x 4D x 50L |
| M5.0 x 0.8 |
4.0d x 10L x 4D x 50L |
| M6.0 x 1.0 |
4.8d x 12L x 6D x 50L |
| M8 x 1.25 |
6.0d x 16L x 6D x 50L |
| M10 x 1.5 |
8.0d x 20L x 8D x 60L |
| M12 x 1.75 |
10d x 24L x 10D x 75L |
| M14 x 2.0 |
10d x 37L x 10D x 75L |
| 6.鎢鋼美製三排牙螺紋銑牙刀（UN）（60°） |
| 規格(UNF) |
刃徑d x避空長L x柄徑D x總長L |
| UNF 1-72 |
1.45d x 3.9L x 4D x 50L |
| UNF 3-56 |
1.95d x 5.3L x 4D x 50L |
| UNF 4-48 |
2.25d x 6.0L x 4D x 50L |
| UNF 6-40 |
2.75d x 7.2L x 4D x 50L |
| UNF 8-36 |
3.3d x 8.7L x 4D x 50L |
| UNF 10-32 |
3.9d x 10L x 4D x 50L |
| UNF 1/4-28 |
5.3d x 12L x 6D x 50L |
| 規格(UNC) |
刃徑d x避空長L x柄徑D x總長L |
| UNC 1-64 |
1.4d x 4.0L x 4D x 50L |
| UNC 2-56 |
1.65d x 5.0L x 4D x 50L |
| UNC 3-48 |
1.95d x 5.0L x 4D x 50L |
| UNC 4-40 |
2.15d x 6.0L x 4D x 50L |
| UNC 5-40 |
2.45d x 7.2L x 4D x 50L |
| UNC 6-32 |
2.65d x 7.5L x 4D x 50L |
| UNC 8-32 |
3.2d x 9.0L x 4D x 50L |
| UNC 10-24 |
3.7d x 10L x 4D x 50L |
| UNC 1/4-20 |
4.9d x 12L x 6D x 50L |
| 7.鎢鋼全牙螺紋銑牙刀（60°） |
| 規格 |
刃徑d x避空長L x柄徑D x總長L |
| M3 x 0.5 |
2.35d x 6.0L x D4 x 50L |
| M4 x 0.7 |
3.15d x 8.0L x D4 x 50L |
| M5 x 0.5 |
4.0d x 10L x 4D x 50L |
| M5 x 0.75 |
4.0d x 10L x 4D x 50L |
| M5 x 0.8 |
4.0d x 10L x 4D x 50L |
| M6 x 0.75 |
4.8d x 12L x 6D x 50L |
| M6 x 1.0 |
4.8d x 12L x 6D x 50L |
| M8 x 0.5 |
6.0d x 16L x 6D x 50L |
| M8 x 0.75 |
6.0d x 16L x 6D x 50L |
| M8 x 1.0 |
6.0d x 16L x 6D x 50L |
| M8 x 1.25 |
6.0d x 16L x 6D x 50L |
| M10 x 1.0 |
8.0d x 21L x 8D x 75L |
| M10 x 1.25 |
8.0d x 21L x 8D x 75L |
| M10 x 1.5 |
8.0d x 21L x 8D x 75L |
| M12 x 0.5 |
10d x 24L x 10D x 75L |
| M12 x 0.75 |
10d x 24L x 10D x 75L |
| M12 x 1.0 |
10d x 24L x 10D x 75L |
| M12 x 1.5 |
10d x 24L x 10D x 75L |
| M12 x 1.75 |
10d x 24L x 10D x 75L |
| M14 x 1.0 |
12d x 28L x 12D x 75L |
| M14 x 1.5 |
12d x 28L x 12D x 75L |
| M14 x 2.0 |
11.6d x 28L x 12D x 75L |
| M16 x 1.5 |
14d x 32L x 14D x 100L |
| M16 x 2.0 |
13d x 32L x 14D x 100L |
| M18 x 2.5 |
14.8d x 38L x 16D x 100L |
| M20 x 1.5 |
16d x 38L x 16D x 100L |
| M24 x 3.0 |
16d x 42L x 16D x 100L |
| 8.鎢鋼美製全牙螺紋銑牙刀（UN）（60°） |
| 規格(UNF) |
刃徑d x避空長L x柄徑D x總長L |
| UNF 1/4-28 |
5.3d x 12L x 6D x 60L |
| UNF 5/16-24 |
6.8d x 18L x 8D x 75L |
| UNF 7-16-20 |
9.5d x 24L x 10D x 75L |
| UNF 9/16-18 |
10d x 24L x 10D x 75L |
| UNF 3/4-16 |
12d x 28L x 12D x 75L |
| 規格(UNC) |
刃徑d x避空長L x柄徑D x總長L |
| UNC 1/4-20 |
5.0d x 12L x 6D x 60L |
| UNC 5/16-18 |
6.5d x 18L x 8D x 75L |
| UNC 3/8-16 |
7.8d x 21L x 8D x 75L |
| UNC 7/16-14 |
9.3d x 24L x 10D x 75L |
| UNC 9/16-12 |
12d x 28L x 12D x 75L |
| UNC 1/2-13 |
10d x 24L x 10D x 75L |
| UNC 5/8-11 |
12d x 38L x 12D x 75L |
| UNC 3/4-10 |
16d x 38L x 16D x 100L |
| 9.鎢鋼二排牙高硬左旋螺紋銑牙刀（60°） |
| 規格 |
刃徑d x避空長L x柄徑D x總長L |
| M1.6 x 0.35 |
1.2d x 3.2L x 4D x 50L |
| M2.0 x 0.4 |
1.55d x 4.0L x 4D x 50L |
| M2.5 x 0.45 |
1.96d x 5.0L x 4D x 50L |
| M3.0 x 0.5 |
2.4d x 6.0L x 4D x 50L |
| M4.0 x 0.7 |
3.15d x 8.0L x 4D x 50L |
| M5.0 x 0.8 |
4.05d x 10L x 6D x 50L |
| M6.0 x 1.0 |
4.8d x 12L x 6D x 50L |
| M8 x 1.25 |
6.5d x 16L x 8D x 60L |
| M10 x 1.5 |
8.2d x 20L x 10D x 75L |
| M12 x 1.75 |
9.2d x 24L x 10D x 75L |
