-康禾精工 KANGHE -
材質：全鎢鋼
塗層處理：白刀/TICN
材質：全鎢鋼
塗層處理：白刀/TICN

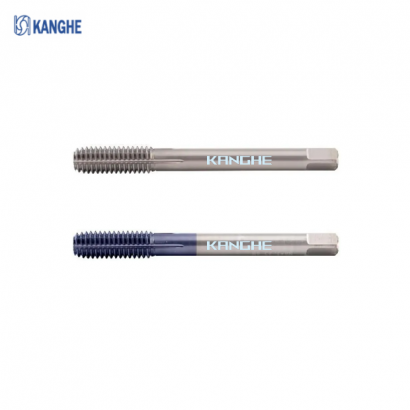

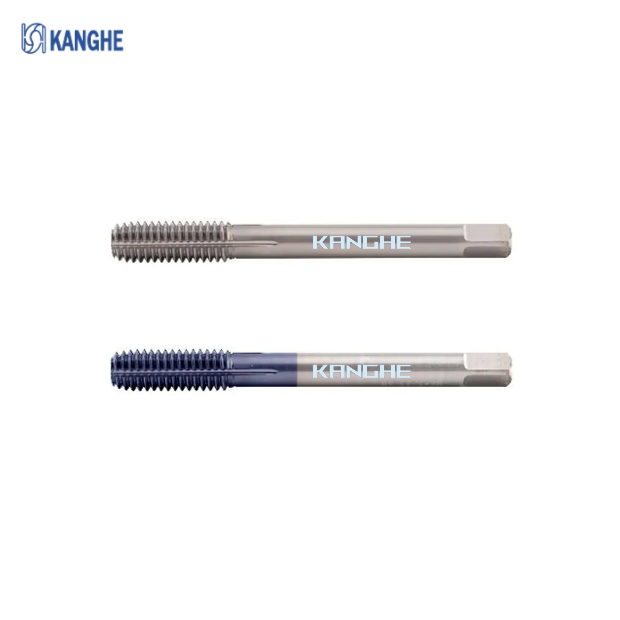

鎢鋼無屑絲攻可加工硬度在HRC55-60的SKD,模具鋼調質後的材料採用耐摩耗性,耐衝擊的超微粒子超硬合金提升絲攻整體偏擺精度和柄部真圓度,可加工出高精度的螺紋底孔徑建議採用6H範圍內的最大值。
※ 詳細規格表如下,特殊規格絲攻可少量訂製※
※ 絲攻規格若有未列出之規格請聯絡我們諮詢※
康禾精工官方LINE@ ID:@KANGHE
※ 絲攻規格若有未列出之規格請聯絡我們諮詢※
康禾精工官方LINE@ ID:@KANGHE
|
規格
|
全長
|
螺紋長
|
柄徑
|
方寬
|
方長
|
|
M1.0*0.25
|
38/45
|
5
|
3
|
2.5
|
5
|
|
M1.2*0.25
|
38/45
|
5
|
3
|
2.5
|
5
|
|
M1.4*0.3
|
38/45
|
6
|
3
|
2.5
|
5
|
|
M1.6*0.35
|
38/45
|
6
|
3
|
2.5
|
5
|
|
M2.0*0.4
|
45.00
|
7
|
3
|
2.5
|
5
|
|
M2.5*0.45
|
45.00
|
8
|
3
|
2.5
|
5
|
|
M3.0*0.5
|
45.00
|
9
|
4
|
3.2
|
6
|
|
M3.5*0.6
|
45.00
|
10
|
4
|
3.2
|
6
|
|
M4*0.7
|
52.00
|
11
|
5
|
4
|
7
|
|
M5*0.8
|
64.00
|
15
|
5.5
|
4.5
|
7
|
|
M6*1.0
|
64.00
|
17
|
6
|
4.5
|
7
|
|
M8*1.0
|
70.00
|
19
|
6.2
|
5
|
8
|
|
M8*1.25
|
70.00
|
19
|
6.2
|
5
|
8
|
|
M10*1.0
|
75.00
|
19
|
8
|
6.3
|
8
|
|
M10*1.25
|
75.00
|
19
|
7
|
5.5
|
8
|
|
M10*1.5
|
75.00
|
23
|
7
|
5.5
|
8
|
|
M12*1.0
|
82.00
|
20
|
8.5
|
6.5
|
9
|
|
M12*1.25
|
82.00
|
25
|
8.5
|
6.5
|
9
|
|
M12*1.5
|
82.00
|
25
|
8.5
|
6.5
|
9
|
|
M12*1.75
|
82.00
|
28
|
8.5
|
6.5
|
9
|
|
M14*1.0
|
88.00
|
20
|
10.5
|
8
|
11
|
|
M14*1.25
|
88.00
|
25
|
10.5
|
8
|
11
|
|
M14*1.5
|
88.00
|
30
|
10.5
|
8
|
11
|
|
M14*2.0
|
88.00
|
32
|
10.5
|
8
|
11
|
|
M16*1.0
|
95.00
|
20
|
12.5
|
10.00
|
13
|
|
M16*1.5
|
95.00
|
28
|
12.5
|
10.00
|
13
|
|
M16*2.0
|
95.00
|
32
|
12.5
|
10.00
|
13
|
